Wapulec Oy has designed a series of high voltage pulse generators, optimized for the use in plasma water treatment systems. Our products can also be used in other applications requiring plasma treatment, such as air purification, ozone generation or surface modification.

Our pulse generators use semiconductor switches coupled with magnetic compression. Pulses of microsecond duration are initially formed the semiconductor switch, and then shortened using saturable inductors.

Basic parameters of pulse generators are given in the table

Parameter Value
Voltage 10-40 kV
Pulse duration 0.1-10 μs
Pulse repetition rate 10-2000 pulses per second
Pulse energy 0.1-3.0 J
Output power 0.1-3.5 kW

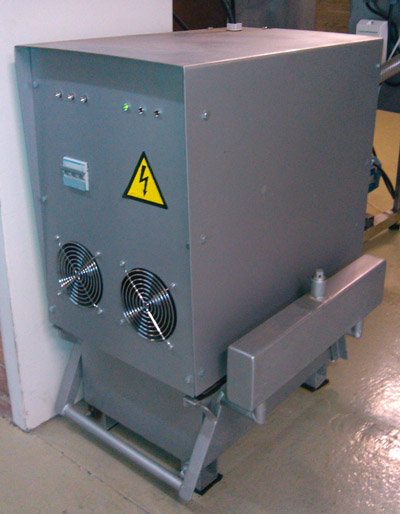

High voltage pulse generator
